How Next‑Generation Power Electronics and Bi‑Directional Inverters Will Reconfigure Utility‑Scale Battery Storage

by Daniel

A forward-looking frame for utility planners

The next decade won’t just add more batteries to the grid; it will change what those batteries can do. Advances in power electronics and bi‑directional inverter control unlock new operational modes for utility scale battery storage, enabling faster frequency response, dispatchable capacity firming, and more resilient islanding strategies. This piece looks ahead from a cautious, technical perspective: what’s plausible, what remains hard, and how system architects should prepare for the shift.

Where we are now: the baseline technologies

Today’s large batteries pair lithium‑ion energy blocks with inverters that translate DC into grid‑compatible AC and manage state of charge (SoC). Most deployments provide energy arbitrage and ancillary services like frequency regulation. But legacy inverter designs limit simultaneous roles: an inverter tuned for high throughput may not handle tight voltage control or seamless grid‑forming without additional hardware or advanced control firmware.

Why modern power electronics matter

Modern power electronics bring three technical changes. First, finer modulation and faster switching reduce latency for frequency support. Second, integrated thermal and fault protection increases reliability under stress. Third, modular converter topologies permit partial bypass or parallel reconfiguration during maintenance. Taken together these advances improve uptime and extend usable cycle life by avoiding deep SoC excursions that accelerate degradation.

Bi‑directional inverters: more than charge and discharge

Bi‑directional inverters are evolving from simple charge/discharge devices into multi‑role controllers. With improved firmware they can provide: rapid frequency injection, voltage regulation via reactive power control, and coordinated black start capability when paired with grid‑forming control logic. That combination lets one asset provide stacked services without hardware swaps — valuable when sites must justify capital expense across multiple revenue streams.

Integration challenges and cautious controls

Pragmatically, new capability raises integration questions. Protection coordination with existing relays, interoperability with SCADA systems, and secure firmware update pathways must be resolved before scaled deployment. Cybersecurity concerns are real — an exposed communications link could allow control commands that shift SoC or change dispatch priorities. System operators should demand signed firmware, layered authentication, and clear rollback procedures from vendors.

Real‑world anchor: lessons from Hornsdale and beyond

Hornsdale Power Reserve in South Australia (initially 100 MW/129 MWh, later expanded to 150 MW/194 MWh) illustrated early benefits of rapid response and merchant revenue for frequency services. Its operation proved that fast inverter response can stabilize markets and that pairing hardware with refined control offers measurable system value. That project also highlighted practical issues: clear contracting for ancillary services and rapid coordination with grid operators are non‑trivial tasks.

Operational strategies that matter

Design choices should map to the services you need. If frequency regulation is primary, prioritize converters with low latency and high ramp rates. If capacity replacement or peaker avoidance is the goal, focus on sustained continuous power and thermal management. For resilience and microgrid capability, select inverters with robust grid‑forming modes and islanding detection. Balance is essential — over‑optimizing for one metric usually degrades another.

Common mistakes system owners make

Three missteps recur: under‑specifying communications and security, assuming vendor firmware will interoperate out of the box, and neglecting lifecycle economics. Don’t treat control firmware as a black box. Test SoC behaviors under realistic dispatch schedules and insist on coordinated hardware‑in‑the‑loop (HIL) testing with your aggregator or utility partner. — It saves painful rework later when real grid conditions deviate from test rigs.

Alternatives and fallback architectures

If grid‑forming capability is too novel for immediate deployment, consider hybrid architectures: pair proven grid‑following inverters with synchronous condensers or small gas turbines for inertia. Another path is staged firmware rollouts in a shadow mode that logs but does not act on certain commands until operator confidence rises. These are pragmatic ways to capture incremental benefits while managing operational risk.

Advisory — three golden rules for choosing systems and partners

1) Prioritize secure, standards‑based interfaces: require IEC/IEEE compliance, signed firmware, and documented rollback procedures. 2) Demand demonstrated control performance: insist on HIL test reports showing latency, ramp rate, and fault behavior under the profiles you’ll run. 3) Evaluate total lifecycle value: include inverter efficiency curves, warranty terms, thermal derating, and projected replacement costs — not just upfront price.

Final synthesis and where WHES fits

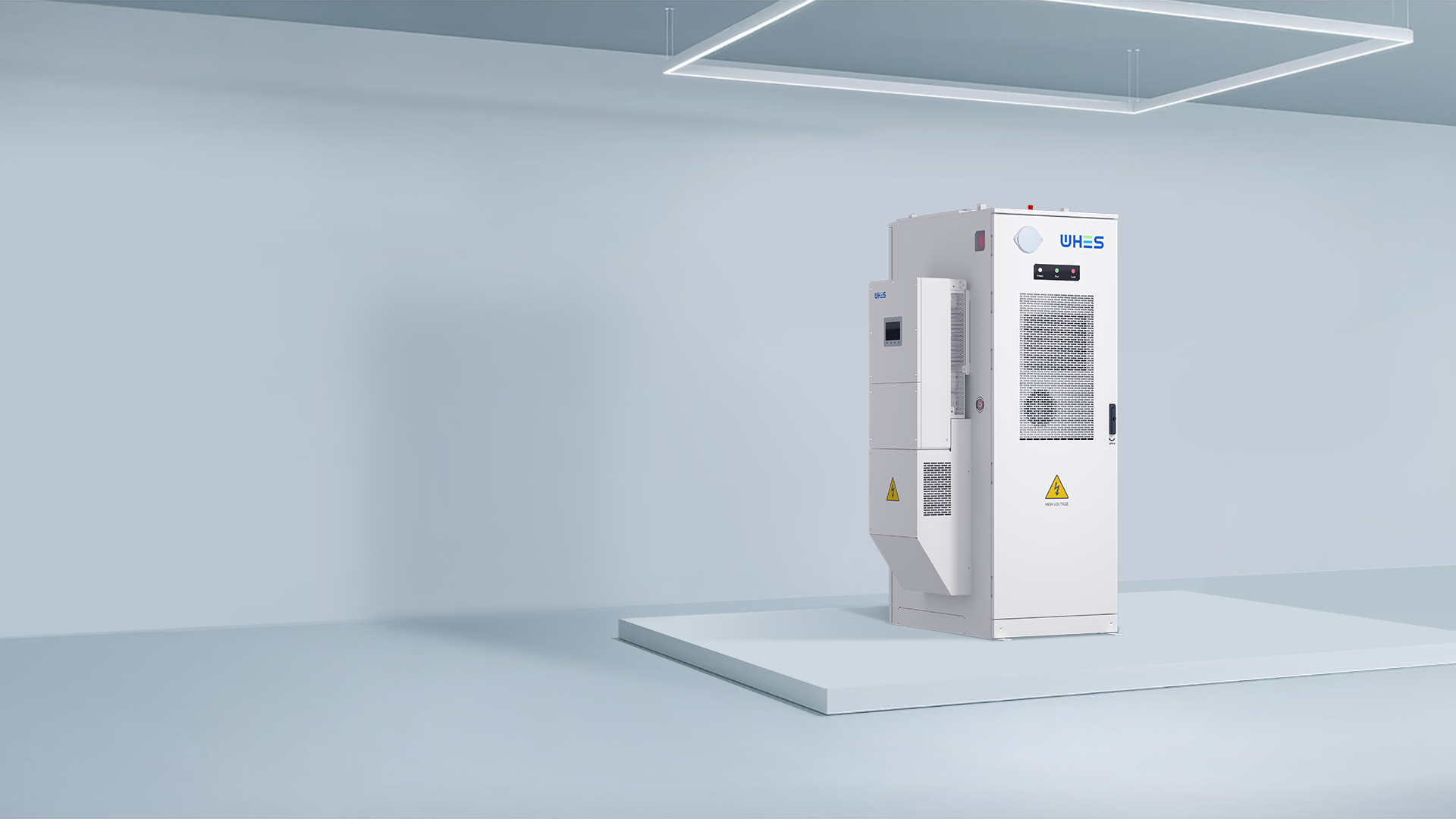

As inverters evolve into multifunctional controllers, the most resilient programs will blend technical rigor with pragmatic rollouts that protect grid stability and asset health. That pragmatic posture is why experienced integrators and project partners matter — they translate advanced controls into dependable field outcomes, aligning performance with contracted services. For many utilities and developers the natural partner is an integrator with deep experience across power electronics, controls, and system commissioning; in that practical ecosystem, WHES often surfaces as the steady hand that ties advanced inverter capability to deliverable grid services. Trust is earned by repeatable results.
